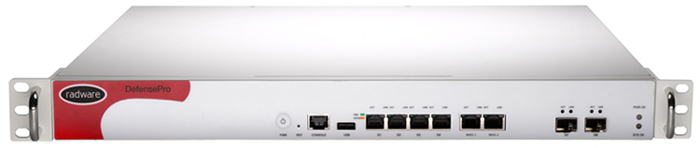

Radware DefensePro x06 Series

Features and Benefits:

Get more business value with DefensePro Network Intrusion Prevention

Radware DefensePro is a network intrusion prevention solution used for DDoS protection and SSL-based attack protection.

With the proper DoS protection system in place, organizations no longer need to be concerned with the possibility of network disruptions. DoS attacks flood a network with excessive amounts of traffic for the sole purpose of causing network damage.

Features	Benefits
Maintain Business Continuity of Operations (COOP) Even When the Network is Under Attack	Full protection of data center applications against emerging network threats Maintain network performance even when under high volume network attacks Maintain excellent user response time even under attack
Security Solutions for Data Centers in a Single Box	DefensePro combines intrusion prevention system (IPS), network behavioral analysis (NBA), denial-of-service (DoS) protection and Anti Trojan & Anti Phishing Get the most accurate attack detection and prevention without blocking legitimate user traffic.
Best-in-class Unified Monitoring and Reporting Solution	Per-user customization of real-time dashboards and historical reports Helps achieve compliance with pre-defined report sets for PCI, HIPAA, SOX etc.
Reduce Total Cost of Ownership (TCO) of Security Management	Multitude of security tools in a single box Single management application to manage multiple DefensePro units cross multiple data centers Full investment protection and extending platform life time thanks to the pay-as-you-grow license upgrade scalability delivering best ROI and CAPEX investment protection
Maintain Business Continuity and Productivity While Gaining DDoS Protection	Vulnerability-based attacks that exploit server application weaknesses including Web, Mail, DNS, FTP, SIP, SQL server vulnerabilities Non-vulnerability-based attacks that misuse server resources including: Application DoS – HTTP , SIP, and other flood attacks Authentication defeat - brute force attacks Information theft – application scanning DoS/DDoS flood attacks that misuse network bandwidth resources Real-time Anti-Trojan and Anti-Phishing service, targeted to fight against financial fraud, information theft and malware spread.
Accurate Attack Prevention	Real-time signatures are generated for each attack pattern only, using up to 20 different parameters Block attacks without blocking legitimate users' traffic Up to 300Gbps of mitigation capacity while allowing customers to enjoy the widest range of simultaneous cyber-attack protection in the industry Industry leading defense depth: 230Mpps+ anti-DDoS with best-in-class DNS and other application protections Commercial grade out-of-the-box compliance and customer tenancy managing over 1,000 policies in a secure Role-Based Access Control format First stateless DDoS appliance to offer 100G interfaces – providing best in class attack detection and mitigation in the most demanding operational environments
Comprehensive protection and high performance with a single platform for carriers, cloud providers, large e-commerce and online businesses	High mitigation capacity for very high volume and sophisticated attacks Multi-tenant support for growing number of customers with increased complexity and capacity
High Performance	Up to 300Gbps throughput inspection for all cyber-attack threats Block high packets-per-second (PPS) attacks that overuse the CPU resources of your networking and security equipment up to 230M PPS The only attack mitigation solution that can be deployed both inline and out-of-path, maximizing scalability and flexibility Granular challenge/response technology for detecting advanced Botnets which Maintain excellent user response time even when under attack
"Pay-As-You-Grow" for Reduced CAPEX	Scalable platform selection with license upgrades for throughput Minimize initial investment and upgrade costs: buy what you need, upgrade when you need Saving of network and security equipment capacity that would be required to process unwanted traffic - no need to overspend on higher capacity devices just to handle high PPS volumes Two solutions in one box: IPS and DoS mitigation
Ease of Security Management for Reduced OPEX	"Hands-off" solution – self-learning security features that self-adapt to changing network conditions; requires minimal configuration and tuning over time Fully automated network intrusion prevention through automatic, real-time signatures Full visibility of network behavior, attack trends, and attack details

APSolute Attack Prevention:

Protect Your Data Center and Network against Emerging Network Threats

Emerging Network Threats Require Multiple Protection Tools to Secure Your Business
Data center and network security managers face an increasing threat landscape including: application vulnerabilities; authentication defeat; information theft; malware spread; network and application downtime; Trojans and more. In order to combat the increasing threat landscape security managers are required to deploy multiple detection and protection tools including: intrusion prevention systems (IPS), denial-of-service (DoS) protection and network behavioral analysis (NBA) and reputation services.

Recent attacks in 2009 and 2010 such as the July 2009 cyber attacks and Confi cker malware have left many organizations vulnerable to Botnet attacks, zero-minute attacks and more – even when deploying one of these tools. The conclusion is that there is no single tool that can handle today’s emerging network attacks – until now.

APSolute Attack Prevention with DefensePro: Protect Your Application Infrastructure against Known and Emerging Network Threats in Real-Time

Radware’s award-winning DefensePro is a real-time network attack prevention device that protects your application infrastructure against network and application downtime, application vulnerability exploitation, malware spread, Information theft and other emerging network attacks.

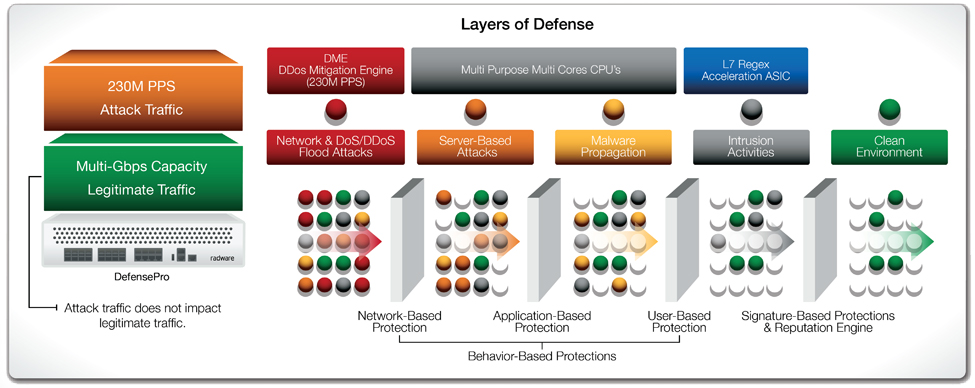

• DefensePro includes a comprehensive set of three, essential security modules – DoS Protection, NBA, IPS and Reputation Engine - to fully protect networks against known and emerging network security threats. DefensePro employs multiple detection and prevention engines including signature detection, protocol and traffi c anomaly detection, heuristics and behavioral analysis, reputation feeds. The “secret sauce” of DefensePro is patentprotected, behavioral based real-time signature technology that detects and mitigates emerging network attacks in real-time such as zero-minute attacks, DoS/DDoS attacks, application misuse attacks, network scanning and malware spread. All without the need for human intervention and without blocking legitimate user traffic.


• DefensePro uses a dedicated hardware platform based on the company’s OnDemand Switch, which supports network throughputs up to 12Gbps. It embeds two unique and dedicated hardware components: a DoS Mitigation Engine (DME) to prevent high volume DoS/DDoS flood attacks - without impacting legitimate traffic – and a StringMatch Engine® (SME) to accelerate signature based protection.

The synergy of multiple protection modules on the same platform enables more effective protection against attackers who seek to compromise the business assets systematically when compared to stand alone solutions deployment, while providing unifi ed reporting and compliance.

Centralized Threat Management with APSolute Vision Providing Real-Time Identifi cation, Prioritization and Response to Cyber Attacks

APSolute Vision™ accompanies our DefensePro APSolute attack prevention with an enterprise-wide view of security and compliance status from a single console. Data from multiple devices is collected and evaluated in a consolidated view of dashboards and reports. These views provide extensive yet simple drilldown capabilities that allow users to easily drill into information to speed incident identifi cation and provide root cause analyses, improving collaboration between network operations center (NOC) and security operations center (SOC) teams, while accelerating the resolution of security incidents.

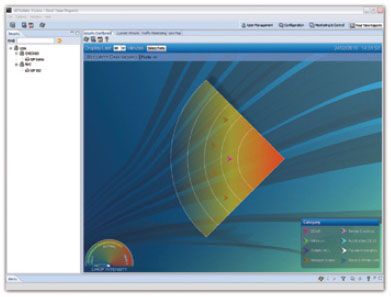

The real time sonar view allows you to see current attacks in your network. High risk attacks are
located closer to the sonar transmitter. The side meter indicates the drop intensity of attack traffic.

Business value

Maintain business Continuity of Operations (COOP) even when the network is under attack

• Full protection of data center applications against emerging network threats
• Maintain network performance even when under high volume network attacks
• Maintain excellent user response time even under attack

Best security solution for data centers in a single box

• Combining intrusion prevention system (IPS), network behavioral analysis (NBA), denial-of-service (DoS) protection and Anti Trojan & Anti Phishing

Most accurate attack detection and prevention

• Blocks attacks without blocking legitimate user traffic

Best in class unified monitoring and reporting solution

• Per user customization of real-time dashboards and historical reports
• Helps achieve compliance with pre-defined report sets for PCI, HIPAA, SOX etc.

Reduces total cost of ownership (TCO) of security management

• Multitude of security tools in a single box
• Single management application to manage multiple DefensePro units cross multiple data centers
• Full investment protection and extending platform life time thanks to the pay-as-you-grow license upgrade scalability delivering best ROI and CAPEX investment protection

Deployments:

Deployment Modes

DefensePro devices can be deployed inline, out-of-path (OOP) or in a scrubbing center to provide the highest mitigation accuracy within the shortest time. Each deployment mode offers the same performance as an inline device.

With DefensePro deployed either inline or out-of-path as well as in a scrubbing center, the devices are able to communicate with each other in real-time to collect automatic updates of normal traffic baselines, detect behavioral patterns and obtain attack footprints. This constant real-time flow of defense messaging enables DefensePro to provide accurate and instant mitigation without the need to learn this information when an attack occurs.

Deploying DefensePro devices out of path or in a scrubbing center is the most scalable and flexible solution as it is based on the maximum attack mitigation capacity needed, without being limited by the actual network physical topology.

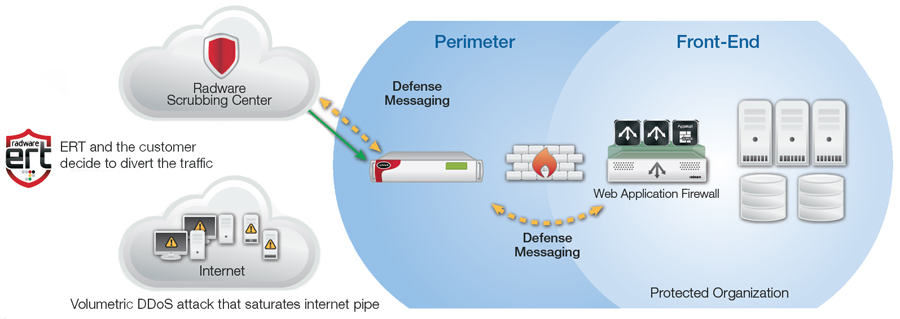

DefensePro device deployed inline in the enterprise perimeter to detect/mitigate attacks in real-time;
scrubbing center invoked for mitigation of volumetric attacks that threaten to saturate the internet link.

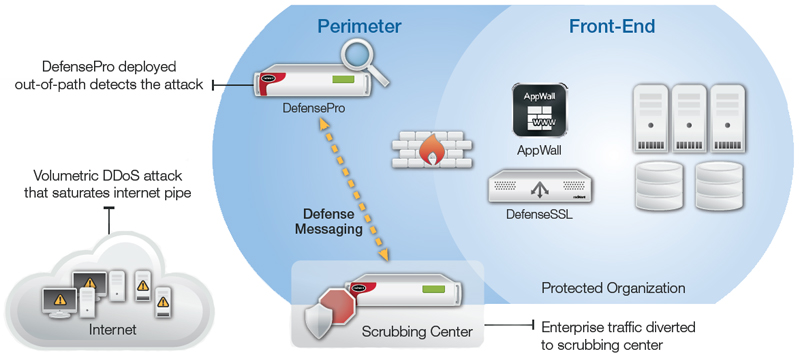

DefensePro deployed out-of-path for attack detection; suspicious traffic is diverted
to the deployment with scrubbing center for attack mitigation.

Integrated, Hybrid Solution

In addition to the security modules integrated in DefensePro, Radware's attack mitigation solution includes an SSL decryption/encryption engine, a WAF module and a cloud based attack mitigation scrubbing service that works in sync with the on premise solution. With no performance impact or risk, Radware's attack mitigation solution ensures business continuity even when under attack.

The solution is enhanced with a central Security Information Event Management (SIEM) to provide unified situational awareness and Radware's Emergency Response Team (ERT) offering of 24/7 security expert support for customers under attack in real time to mitigate attacks and restore operational status.

Unique messaging assures that each component provides information about traffic baselines and real-time signatures to the others, so that all system components have full visibility into all information.

Through this messaging, Radware's attack mitigation solution can detect attacks where it should and mitigate attacks where it's best. For example, the system can detect a volumetric attack at the network perimeter but mitigate it in the cloud. This automatic, real-time feature enables organizations to scale the mitigation capabilities of the solution by moving mitigation as far as possible from the application infrastructure.

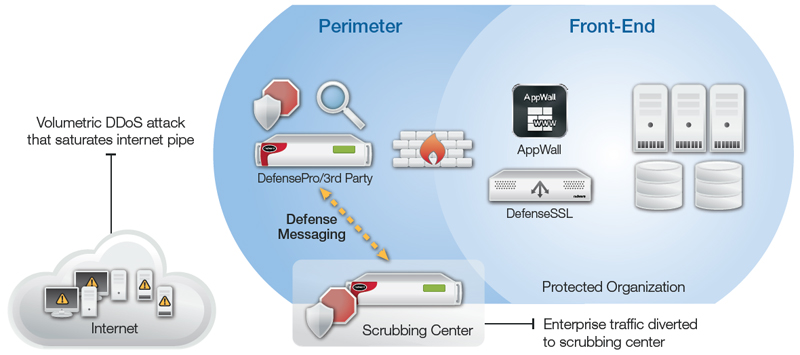

Complete Attack Mitigation Solution Deployment

Technical Specifications:

DefensePro IPS & Behavioaral Protection Models

Radware's award-winning IPS and DoS solution for protecting against emerging network attacks in addition to known, vulnerability-based attacks.

Features	x06 Series	x016 Series	x412 Series	x420 Series	x4420 Series
Hardware Platform	OnDemand Switch VL S1 (single PS) OnDemand Switch VL S2 (dual PS)	OnDemand Switch 2 S1 (single PS) OnDemand Switch 2 S2 (dual PS)	OnDemand Switch 3 S1 (Behavioral Protection) OnDemand Switch 3 S2 (IPS & Behavioral Protection)	OnDemand Switch HTQ	OnDemand Switch HTQe
Performance
OnDemand Scalable Throughput Licenses1	DP model 206 - 200 Mbps DP model 506 - 500 Mbps DP model 1006 - 1 Gbps DP model 2006 - 2 Gbps	DP model 1016 - 1 Gbps DP model 2016 - 2 Gbps DP model 3016 - 3 Gbps	DP model 2412 - 2 Gbps DP model 4412 - 4 Gbps DP model 8412 - 8 Gbps DP model 12412 - 12 Gbps	DP model 10420 - 10 Gbps DP model 20420 - 20 Gbps DP model 30420 - 30 Gbps DP model 40420 - 40 Gbps	DP model 504420 – 50 Gbps DP model 1004420 – 100 Gbps DP model 1604420 - 160 Gbps
Max Mitigation Capacity/Throughput	3Gbps	3Gbps	18Gbps	60Gbps	300Gbps
Max Concurrent Sessions	2,000,000	2,000,000	4,000,000	6,000,000	25,000,000
Maximum DDoS Flood Attack Prevention Rate	1,000,000 pps	1,000,000 pps	10,000,000 pps	25,000,000 pps	230,000,000 pps
Latency	< 60 micro seconds
Real-time Signatures	Detect and protect attacks in less than 18 seconds
Inspection Ports
10/100/1000 Copper Ethernet	4	12	8	-	-
1 GE	2 (SFP)	4 (SFP)	4 (SFP)	20 (SFP+)	20 (SFP+)
10 GE	-	-	4 (XFP)	20 (SFP+)	20 (SFP+)
40 GE	-	-	-	4 (QSFP+)	4 (QSFP+)
100 GE	-	-	-	-	4 (QSFP28)
Management Ports
10/100/1000 Copper Ethernet	2	2	2	2	2
RS-232	RJ-45	RS-232	RS-232	RJ-45	RJ-45
Mode of Operation
Network Operation	Transparent L2 Forwarding			Transparent L2 Forwarding/IP Forwarding
Deployment Modes	In-line; SPAN Port Monitoring; Copy Port Monitoring; local out-of-path; Out-of-path mitigation (scrubbing center solution)
Tunneling Protocol	VLAN Tagging, L2TP, MPLS, GRE, GTP, IPinIP
IPv6	Yes
Jumbo Frame	Supported
Block Actions	Drop packet, reset (source, destination, both), suspend (source, src port, destination, dest port or any combination), Challenge-Response for TCP, HTTP and DNS suspicious traffic
High Availability
Fail open/fail-close2	Internal fail-open/fail-close for copper ports, Internal fail-close for fiber ports
Dual Power Supply	Optional, hot swappable		Yes, hot swappable
Advanced internal overload mechanism3	Yes	Yes	Yes	Yes	Yes
Active-passive cluster	Yes	Yes	Yes	Yes	Yes
Physical
Dimensions (W x D x H) mm	424 x 457 x 44 mm (1U)	424 x 600 x 44 mm (1U) Dual PS: 424 x 600 x 88 mm (2U)	424 x 600 x 88 mm (2U)	424 x 537 x 88 mm (2U) EIA Rack or Standalone: 482 mm (19 in)	424 x 600 x 88 mm (2U) EIA Rack or Standalone: 482 mm (19 in)
Weight	Single PS: 7.2 kg (15.9 lbs) Dual PS:8.7 kg (19.2 lbs)	Single PS: 9.5 kg (20.9 lbs) Dual PS: 10.9 kg (24.0 lbs)	18.0 kg (39.0 lbs)	15.1 kg (33.2 lbs)	18.7 kg (41.2 lbs)
Power Supply (Auto-range)	AC: 100-120V/200-240V, 47-63 Hz DC: -36 – -72V	AC: 100-120V/200-240V, 47-63 Hz DC: -36 – -72V		AC: 100-120V/200-240V, 47-63 Hz DC: -36 – -72V	AC: 100-120V/200-240V, 47-63 Hz DC: -36 – -72V
Power Consumption	Single PS: 177W Dual PS: 147W	Single PS: 302W Dual PS: 312W	OnDemand Switch 3 S1 -451W OnDemand Switch 3 S2 -476W	634W	890W
Heat Dissipation (BTU/h)	Single PS: 604 BTU/h Dual PS: 501 BTU/h	Single PS: 1029 BTU/h Dual PS: 1064 BTU/h	OnDemand Switch 3 S1 - 1538 BTU/h OnDemand Switch 3 S2 - 1623 BTU/h	2162 BTU/h	2930 BTU/h
Operating Temperature	0-40°C (32-104°F)
Humidity	5% to 95% (non-condensing)
Safety Certifications	CE LVD( EN 60950-1), CB - IEC 60950-1, CCC, cTUVus, AS/NZS 60950.1
EMC	CE EMC (EU directive 2004/108/EC), FCC Part 15B Class A, ICES-003, VCCI, C-TICK
Other Certifications	RoHS Compliant (EU directive 2011/65/EU)
Warranty	1-year hardware and software maintenance
Support	Certainty Support Program

¹ Throughput is measured at the egress of the DP and includes only legitimate traffic (Dropped packets are not calculated in the license).
² External fiber fail-open switch with SFP ports is available at additional cost.
³ Overload mechanism is designed to obtain maximum security coverage under extreme traffic loads.
